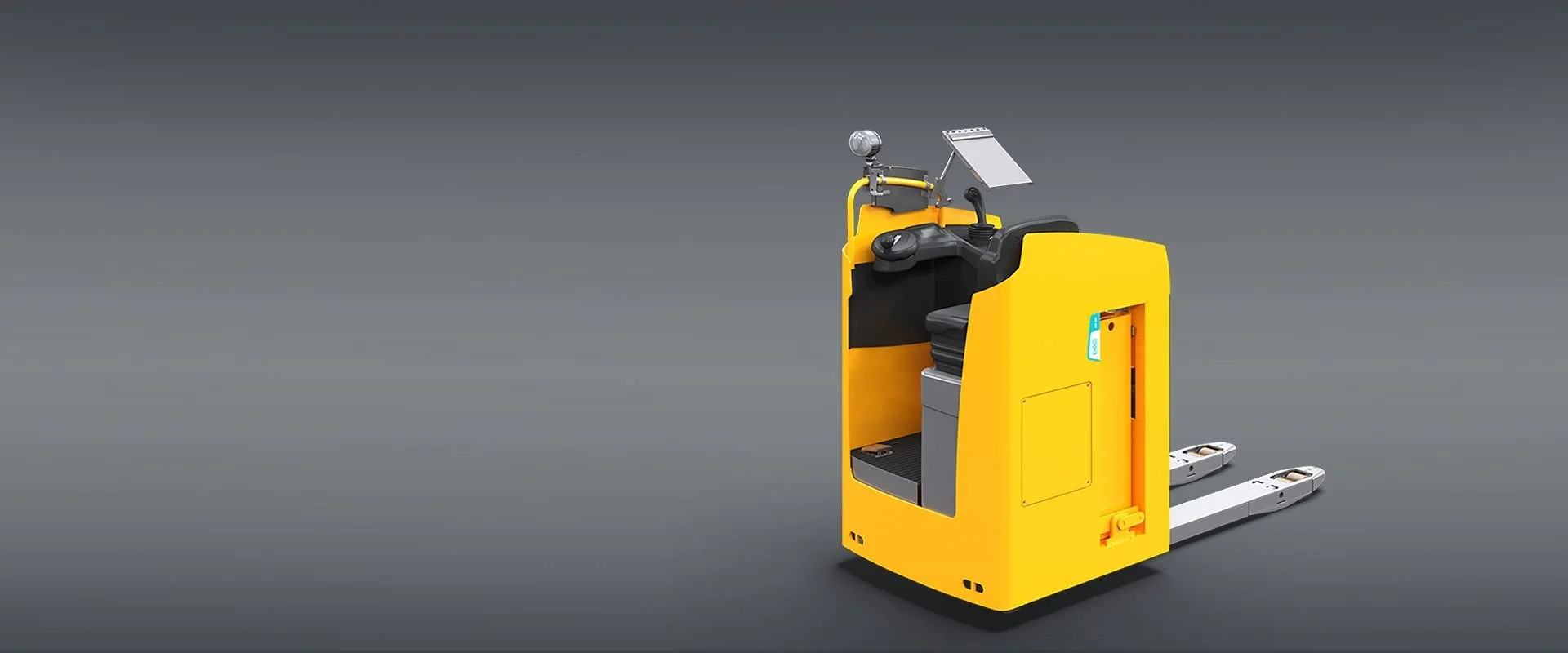

Stand-on/ sideways-seated stacker 2.0t




Stand-on/ sideways-seated stacker
2.0t




ESE 220-320


The comfortable and robust ESE Series 2 and 3 electric transverse-seated pallet trucks are ideal for the transport of heavier goods over mid-range and longer distances as well as for the loading and unloading of HGVs.

With the operator positioned sideways to the direction of travel, perfect all-round visibility and a relaxed working position are ensured. This is particularly beneficial during frequent direction changes. with additional support from the electric steering system. Due to narrower aisle widths, the ESE enables flexible handling, which is perfected by the spacious, ergonomic workplace and the intuitive, convenient handling via multiPILOT and a 4-inch display. The powerful motor ensures high speed and rapid acceleration. With our optionally available lithium-ion technology, these comfortable powerhouses reach an outstanding level of readiness, even in multi-shift operation. This is made possible by short charging times and fast booster charging.

Features


  • Sideways seating for ergonomic working conditions.

  • Compact design for flexible application and narrow aisle widths.

  • Ideal for loading and unloading HGVs and for longer distances.

  • Maximum speed and acceleration.

  • Display featuring steering position indicator and travel program selection.



Specifications


Model Load capacity Lift height Travel speed Overall length Battery voltage
ESE 220 2,000 kg 125 mm 12.5 km/h 2,009 mm 24 V
ESE 320 2,000 kg 125 mm 12.5 km/h 2,009 mm 24 V


Downloads





For more information contact North Island Forklifts.
