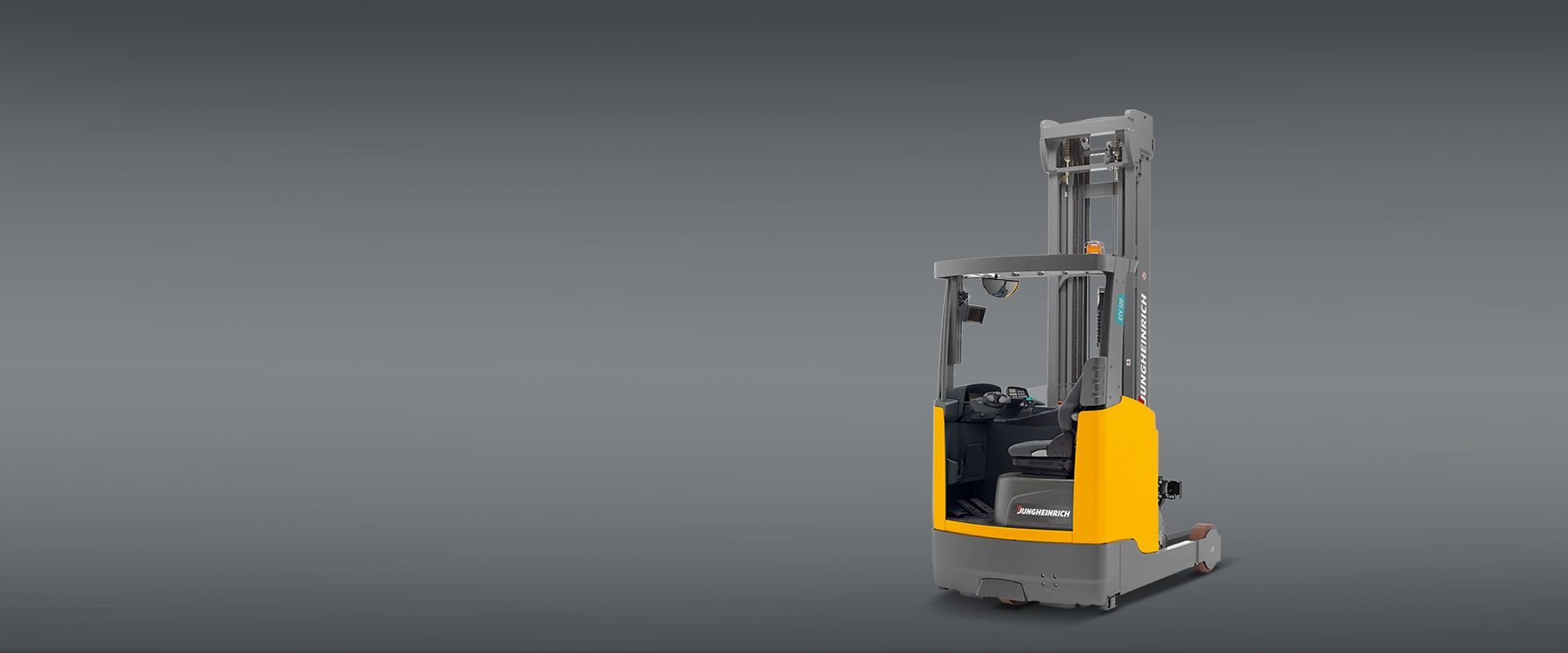

Reach truck
1.8 - 2.5t
ETV/M 318-325
Our stable and powerful Series 3 reach trucks convince with their robust frame, generous wheel diameters and an extremely robust mast. They can easily lift loads to heights of up to 14 metres.
While the ETV truck can accommodate Euro pallets between its support arms, the narrower design of the ETM offers tremendous advantages in drive-in racking and block warehouses. You can significantly benefit from higher throughput with reduced energy consumption, reduced mast sway during stacking and retrieval, and accelerated fork lowering with the loweringPRO option. Advanced lithium-ion batteries with a long service life, fast booster charging and zero maintenance guarantee long-lasting performance. Equipment options such as the panoramic roof or video control for high lift heights complete this superior package.
Features
Extremely stable design for high residual capacity
Electric load wheel brakes for increased safety
180° and 360° steering for flexible manoeuvring
loweringPRO option for optimisation of the lowering speed
Tailor-made optional features for all applications
specifications
| Model | Load capacity | Lift height | Travel speed | Overall length | Battery voltage |
|---|---|---|---|---|---|
| ETV 318 | 1,800 kg | 11,510 mm | 14 km/h | 2,456 mm | 48 V |
| ETV 320 | 2,000 kg | 14,000 mm | 14 km/h | 2,466 mm | 48 V |
| ETM 325 | 2,500 kg | 11,510 mm | 14 km/h | 2,712 mm | 48 V |
| ETV 325 | 2,500 kg | 13,000 mm | 14 km/h | 2,546 mm | 48 V |
Downloads
For more information contact North Island Forklifts.
