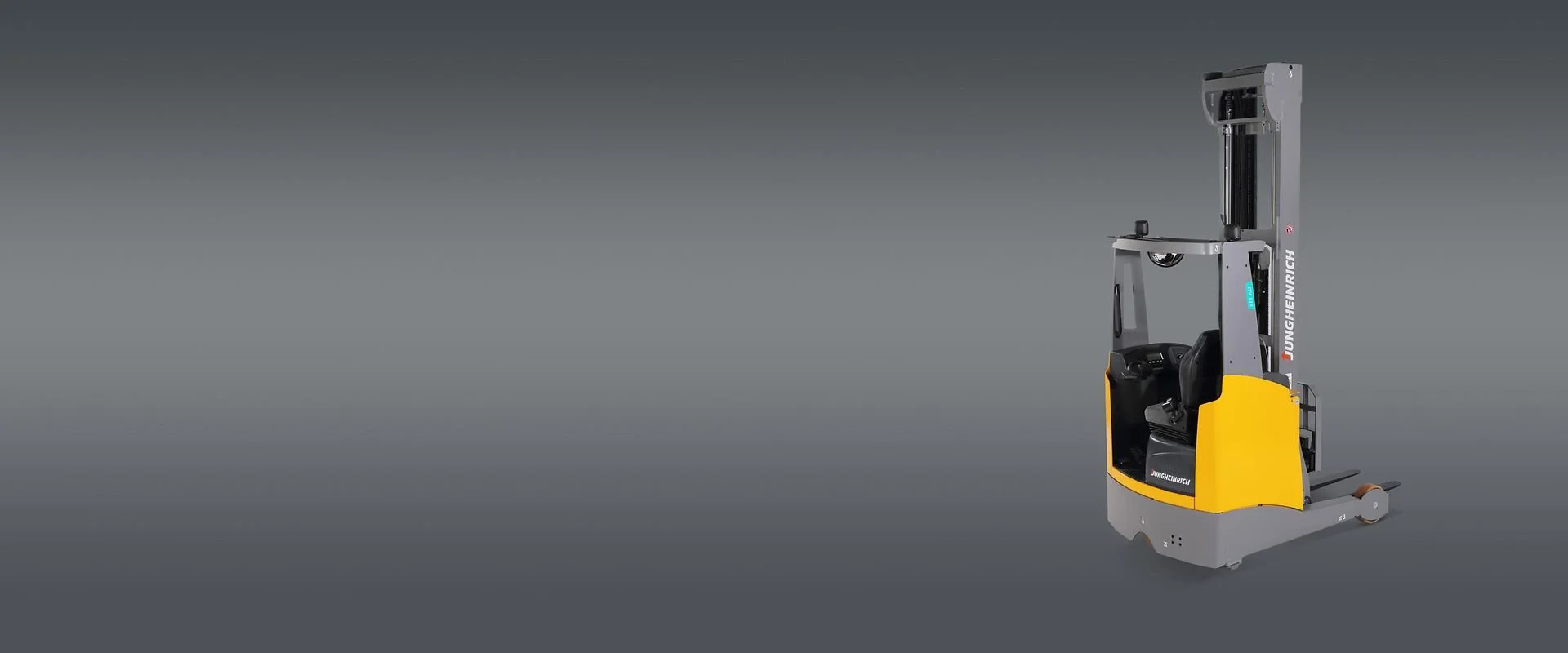

Electric reach truck 1400 / 1600 / 1800 / 2000 kg

Electric reach truck
1400 / 1600 / 1800 / 2000 kg

ETV 114n/116n/118n/120n

Jungheinrich ETV 1n reach trucks provide the best solution for cost-effective stacking and retrieval at high lift heights and in confined spaces.

Be it when handling pallets (operating in drive-in racking), in narrow or low areas, or single shift or multi-shift applications, the ETVn Series 1 reach trucks are suited to every application, with four different capacity ranges.

Features

Drive, lift and steering motors use 3-phase AC technology
Improved manoeuvrability through compact frame design
Electric 180° steering and integrated sideshift fitted as standard
Smooth hydraulic operation with soloPILOT control lever
High operating safety with curveCONTROL

specifications



      Model
      Load capacity
      Lift height
      Travel speed
      Overall length
      Battery voltage



      ETV 114n
      1,400 kg
      9,020 mm
      10 km/h
      2,346 mm
      48 V


      ETV 116n
      1,600 kg
      10,700 mm
      10 km/h
      2,418 mm
      48 V


      ETV 118n
      1,800 kg
      9,020 mm
      10 km/h
      2,518 mm
      48 V


      ETV 120n
      2,000 kg
      11,510 mm
      10 km/h
      2,518 mm
      48 V


Downloads

spec sheet

Fact sheet

For more information contact North Island Forklifts.
