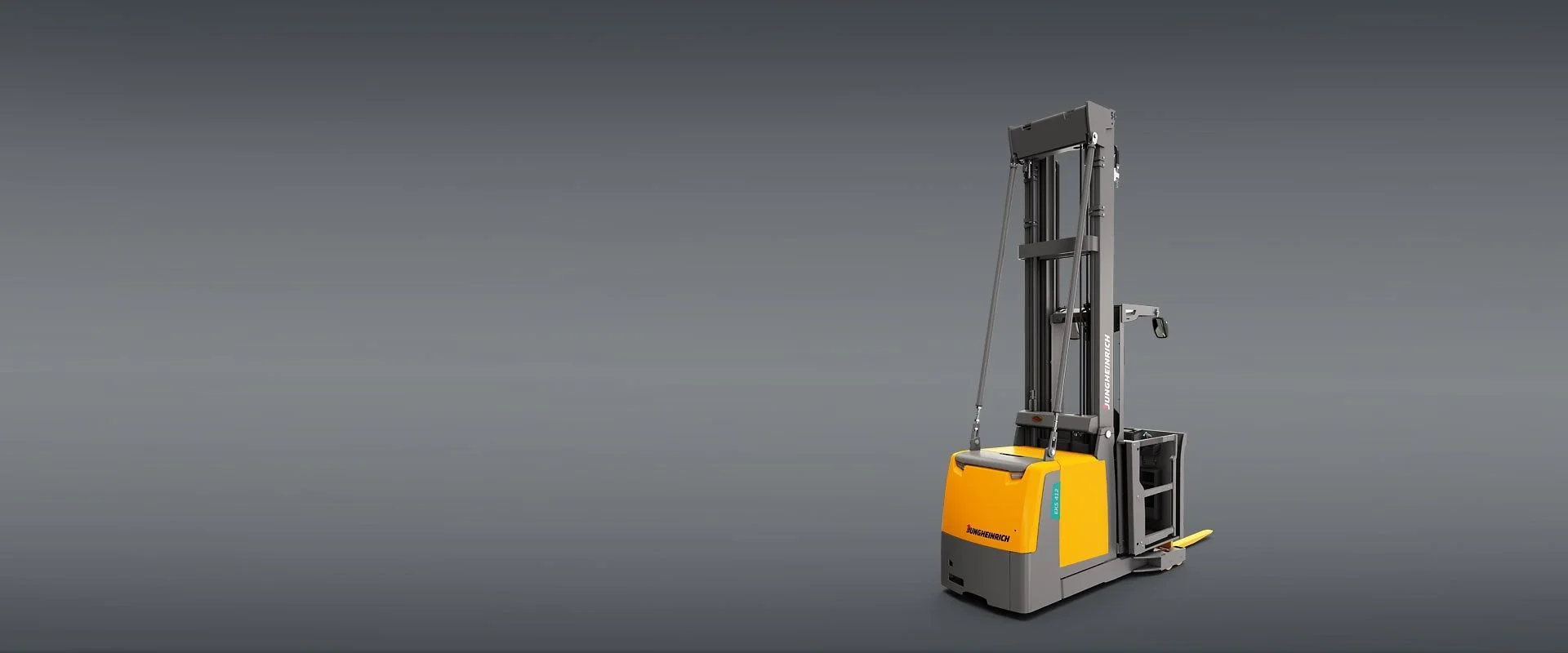

Medium/high level order picker
1.0 - 1.2t
EKS 310/ 412
The efficient EKS 412 and EKS 310 medium/high level order pickers are optimised for use in your warehouse thanks to their outstanding travel and lift performance.
With excellent ergonomics and picking performance, the two new energy-saving and freely movable 24-V models excel in wide-aisle warehouses. Thanks to the extended mast portfolio, order picking heights of more than 10 meters can be reached effortlessly. With a wide range of individual equipment options, the two vertical order pickers are versatile in their use and create a particularly ergonomic work environment thanks to an optimised operating concept coupled with perfect all-round visibility. Whether with powerful lithium-ion power or lead-acid batteries: Our new EKS 412 and EKS 310 medium/high level order pickers combine optimum picking performance with impressive energy efficiency.
Features
Ergonomic and individually adjustable operating concept.
Optimum view and visibility in warehouse operations.
Perfectly designed for use in wide aisles.
High driving stability for safe and ergonomic operation.
Can be extended with the three-stage Jungheinrich DT mast.
specifications
| Model | Load capacity | Lift height | Travel speed | Overall length | Battery voltage |
|---|---|---|---|---|---|
| EKS 310 Z | 1,000 kg | 7,000 mm | 10 km/h | 3,095 mm | 24 V |
| EKS 310 L | 1,000 kg | 7,000 mm | 10 km/h | 3,140 mm | 24 V |
| EKS 310 O | 1,000 kg | 7,000 mm | 10 km/h | 3,085 mm | 24 V |
| EKS 412 Z | 1,200 kg | 9,000 mm | 10 km/h | 3,285 mm | 24 V |
| EKS 412 L | 1,200 kg | 9,000 mm | 10 km/h | 3,330 mm | 24 V |
| EKS 412 O | 1,200 kg | 9,000 mm | 10 km/h | 3,275 mm | 24 V |
Downloads
For more information contact North Island Forklifts.
