Diesel Forklift Trucks
10-16 tonnes

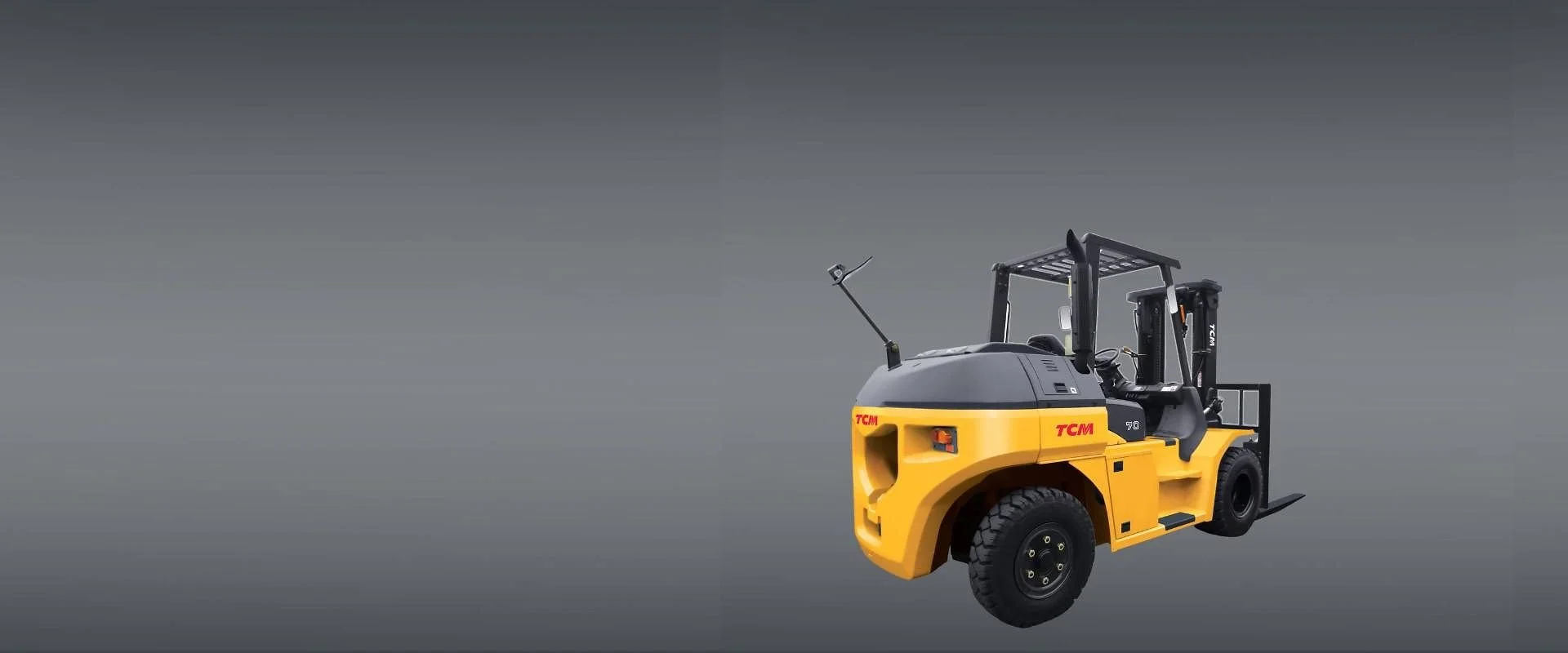

TCM FD 10.0 -16.0 T
Heavy-Duty Forklift trucks with reliable manoeuvrability and safety. Superb performance under hardworking conditions. The truck comes with Innovated Engine, 6BG1T diesel engine has the performance to meet the emission levels required in Stage II/Tier 2 emission control standards in the U.S. (EPA), Europe and Japan.
features
Three Speed Automatic Transmissions
Integrated Instrument panel
Deluxe Multi-Functional Driver Seat with Suspension (option)
Improved Visibility by Pillar-less Cabin (option)
Small Steering Wheel Diameter
Specifications
| Model | Load capacity | Lift height | Overall length |
|---|---|---|---|
| TCM FD100-3H | 10,000 kg | 3,000 mm | 4,285 mm |
| TCM FD115-3 | 11,500 kg | 3,000 mm | 4,285 mm |
| TCM FD120-3 | 12,000 kg | 3,000 mm | 4,285 mm |
| TCM FD135-3 | 13,500 kg | 3,000 mm | 4,545 mm |
| TCM FD150S-3 | 15,000 kg | 3,000 mm | 4,545 mm |
| TCM FD160S-3 | 16,000 kg | 3,000 mm | 4,685 mm |
Downloads
For more information contact North Island Forklifts.
